Uni-D005

UNI-D005

Product Description - Portable and Multifunction

Features - Quick deployment task, Single-person operation

Fuselage Shape

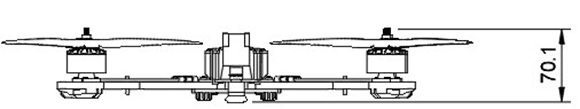

• Expanded size : 278 mm (L) x 290 mm (W) x 70 mm  (H)

• Folded size (excluding blades): 380 mm (L) x 63 mm (W) x 70 mm (H)

• Design: Fuselage includes 4 shafts (single-shaft single propeller)

Body

• Weight: 1.8 kg (include battery)

• Material: Main structure is carbon fiber

• Power Source: Li polymer battery (6S,6000mAh)

• Blades: Carbon fiber

• Motor: Brushless motor with direct drive

Flight Performance

• Endurance: Over 30 minutes (without payload)

• Max Take-Off Weight: 12 kg

• Payload: 4 kg

• Mounting: Picatinny rail

Flight Speed

• Cruising speed of over 140 km/h

Flight Guidance and Image Transmission Distance

• Distance: 10 km

• Lens: 1200TVL ,DAY/NIGHT Camera

• Support Systems: Ground station

• OSD Screen: Displays real-time flight data, including:

  • Altitude, speed, satellite status, coordinates, voltage, flight distance.

Goggle Specifications

Fuselage Shape

• With antennas folded: 170×109×112 mm (L×W×H)

• With antennas unfolded: 205×109×112 mm (L×W×H)

Body

• Approximate 470 g (battery included )

• Screen Size (single screen): 0.49 inch

• Power Source: Li polymer battery (5.6-8.4 V  3000 mAh)

Flight Performance

• Real View FOV : 44°

• Resolution (single screen) : 1920×1080

• Refresh Rate : 100 Hz

• Supported Video and Audio Playback Formats

• MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)

• 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).

• Max Video Specification: 4K/60fps

Image Transmission

• Distance: 13 km (FCC); 10 km (CE/SRRC/MIC)

• Latency  :

  • 1080p/100fps video transmission quality: latency down to 24 ms

  • 1080p/60fps video transmission quality: latency down to 40 ms

• Max Video Bitrate : 60 Mbps

• Operating Frequency :

  • 2.4000-2.4835 GHz

  • 5.725-5.850 GHz

• Support: Wi-Fi , Bluetooth
